 | Pressure safety pad ·The pressure sensor is safely padded, and a human pressure trigger signal is sent to the protection products of the safety relay stop equipment. ·Various safety specifications and special shapes can be customized. ·Each mat provides four wires to the controller to provide redundant wires to monitor the normally open safety loop. ·It is more free than traditional safety product isolation. ·Safety mats can be used to monitor the whole dangerous area. |

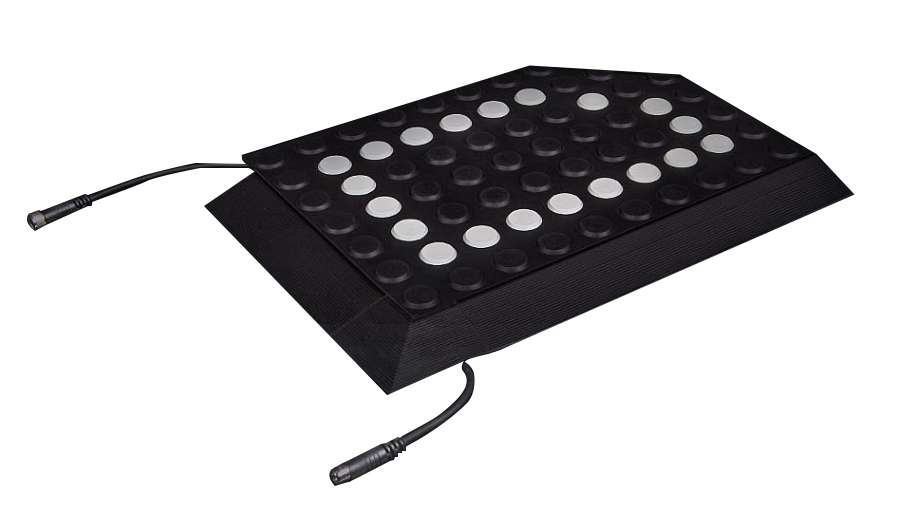

| ▊ | International new safety mat |
·Equipped with single cable type and double cable type safety pads which are easy to connect with multiple safety pads. ·Get the certification of EN ISO 13849-1(PLd/ safety category 3) EN ISO 13856-1. ·Build the safety loop of special safety cushion controller to achieve PLe. |  |
| ▊ | technical parameter |
·Mat type: normally open SPST, four-wire system ·Mode: pressure sensing ·Force: adult > 30kg.(66lb.) ·Combustibility of floor mat: self-extinguishing, meeting UL94VO. ·Floor mat surface material: PVC ·Operating temperature: -37 to 66℃(-35 to 150°F) |  |
| ▊ | Industrial application |
·Welding robot ·Assemble the machine ·Material handling ·Packaging machine ·Tire machine ·Punch press ·Printing |
|
| ▊ | Product option description |
 |
When calculating the installation specifications: the size of the fixed edge needs to be taken into account. When calculating the safety specifications, consider the safety distance (see the standard 13855 for details). |

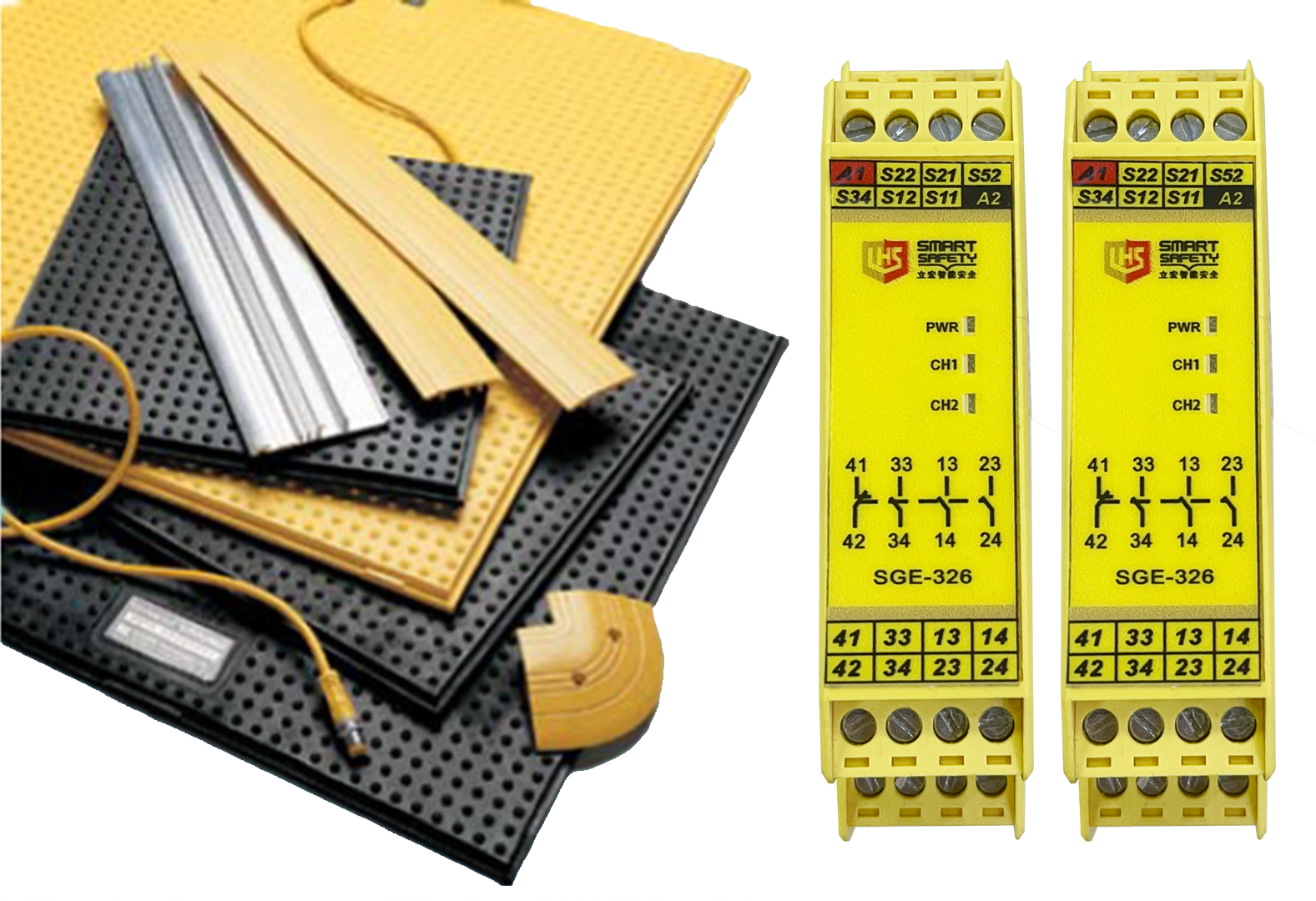

| ▊ | Product selection |
product name | Product type and model | Fixed edge | Line view | |
| moncee safety mats | black LMM | yellow LMMY | Aluminum-plastic edge TKM | |
Single cable  | LMM-200-300 LMM-500-500 LMM-500-1000 LMM-750-1000 LMM-1000-1000 LMM-1000-1500 | LMMY-200-300 LMMY-500-500 LMMY-500-1000 LMMY-750-1000 LMMY-1000-1000 LMMY-1000-1500 | TKM-200-300 TKM-500-500 TKM-500-1000 TKM-750-1000 TKM-1000-1000 TKM-1000-1500 | RM5rice RM10rice RM20rice RM30rice |
雙電纜線
| LMM2-200-300 LMM2-500-500 LMM2-500-1000 LMM2-750-1000 LMM2-1000-1000 LMM2-1000-1500 | LMMY2-200-300 LMMY2-500-500 LMMY2-500-1000 LMMY2-750-1000 LMMY2-1000-1000 LMMY2-1000-1500 | TKM-200-300 TKM-500-500 TKM-500-1000 TKM-750-1000 TKM-1000-1000 TKM-1000-1500 | RM5rice RM10rice RM20rice RM30rice |
LHE safety blanket
| LMME-200-300 LMME-300-300 LMME-500-500 LMME-500-1000 LMME-750-1000 LMME-1000-1000 LMME-1000-1500 | LMMYE-200-300 LMMYE-300-300 LMMYE-400-500 LMMYE-500-1000 LMMYE-750-1000 LMMYE-1000-1000 LMMYE-1000-1500 | TKM-200-300 TKM-300-500 TKM-400-500 TKM-500-1000 TKM-750-1000 TKM-1000-1000 TKM-1000-1500 | RM5rice RM10rice RM20rice RM30rice |
attachment | name | specifications | model | remarks |
 | Unilateral cable | 5M 10M 15M | RM-5 RM-10 RM-15 | |
 | Extension cable | 5M 10M 15M | RM2-5 RM2-10 RM2-15 | |

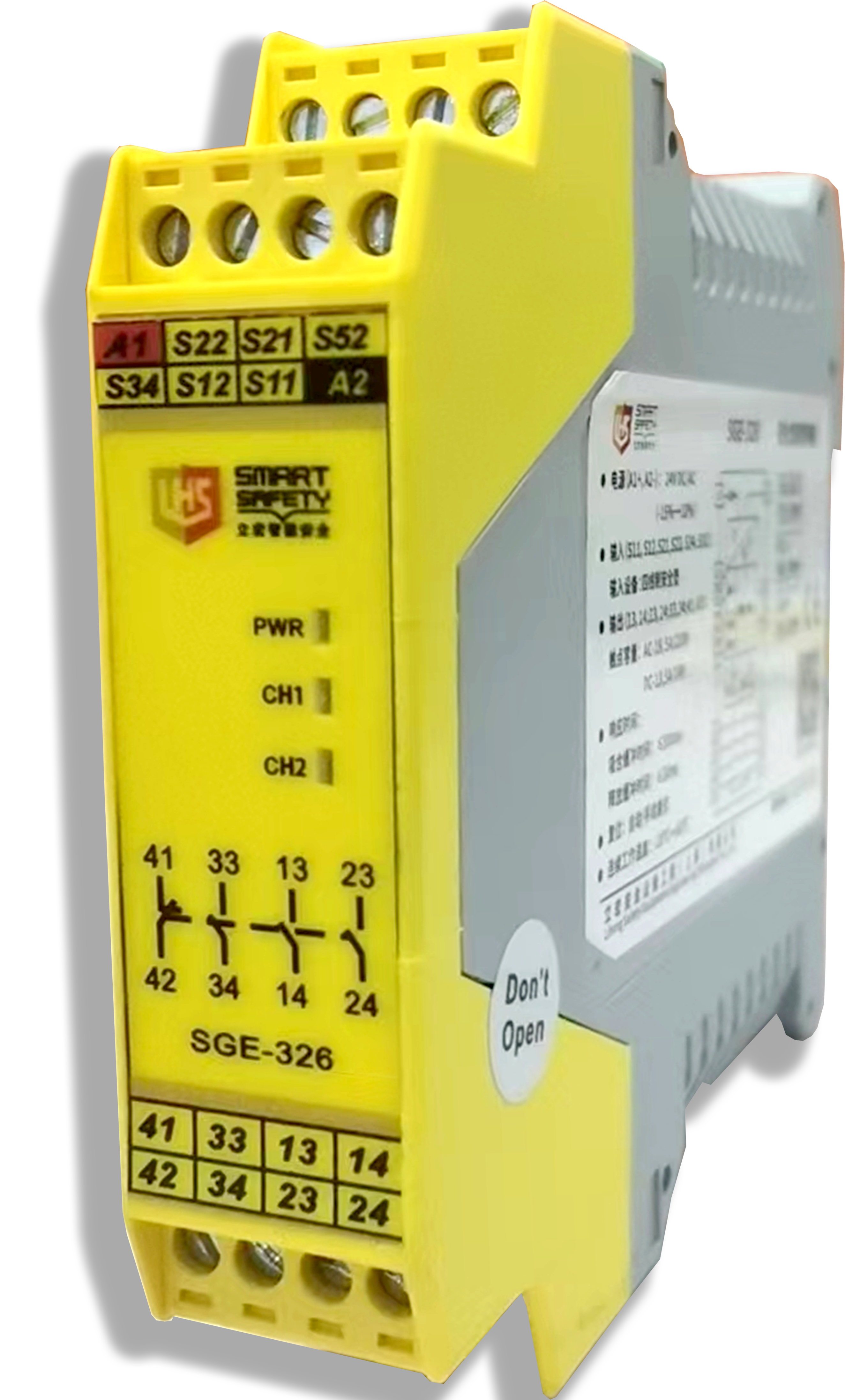

| ▊ | Technical data of safety relay |
·Power supply characteristics： supply voltage：24V DC voltage range：20～30V DC Current loss：≤100mA(24V DC) ·Input characteristics： incoming current：≤10mA(24V DC) conductor resistance：≤15Ω Input equipment: safety carpet, etc. Note: Safety carpets should not be monitored by the same module as other types of input devices. Input channel: 3 ·output characteristic： Number of contacts: 2NO (safety output) Contact material: AgSn02 Contact fuse protection: 10A is fast, 6A is slow. Switching capacity: 5A/230V AC；; 5A/24V DC ·Time characteristic： Suction buffer time: ≤100ms Release buffer time: ≤30ms Recovery time: Emergency stop operation: ≤30ms Power failure: ≤1000ms Short-term power interruption: 20ms ·control logic： Control logic: 8 kinds of logic, and new logic can be customized according to customer requirements. Delay setting time: 0s ~ 99s |
|
